Quick Details

  • Standard or Nonstandard: Standard
  • Structure: Ball, 3way T/L-type float ball core
  • Pressure: Medium Pressure, PN1.6-4.0Mpa
  • Power: Pneumatic
  • Material: Stainless Steel
  • Temperature of Media: Medium Temperature
  • Media: Water
  • Port Size: DN15-DN300
  • Place of Origin: Anhui, China (Mainland)
  • Model Number: ball valve
  • Brand Name: POV
  • Application: General
  • Product name: explosion-proof motorized npt threaded 40mm 3 way ball valve
  • Body material: WCB,304,316
  • Connection: flange , screw,thread
  • Standard: GB/T12238-2008
  • Seat sealing: PTFE,PPL,Hard seal
  • Hard alloy: surface spray welding,tungsten nitride
  • Core meterial: 304,316,316L ,etc
  • Stem meterial: 304

Packaging & Delivery

Packaging Details: Packaging Details:
1, some valves weight is less than 25kgs/unit, packed by carton
2, big size packed by plywood cases
3, HS code: 8481400000
4, website: https://povalve.en.alibaba.com
Delivery Detail:within one week after payment
Delivery Detail: delivery within 7days after payment

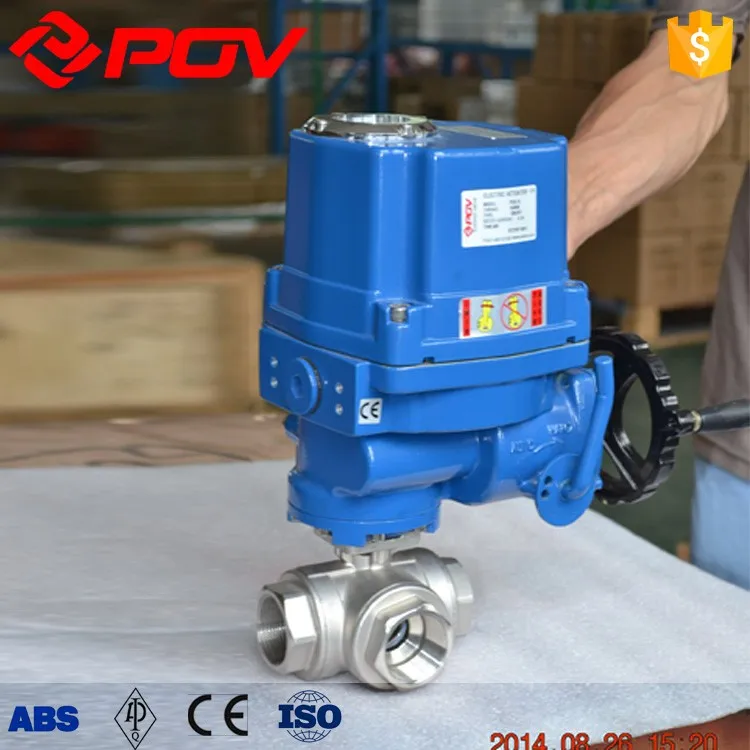

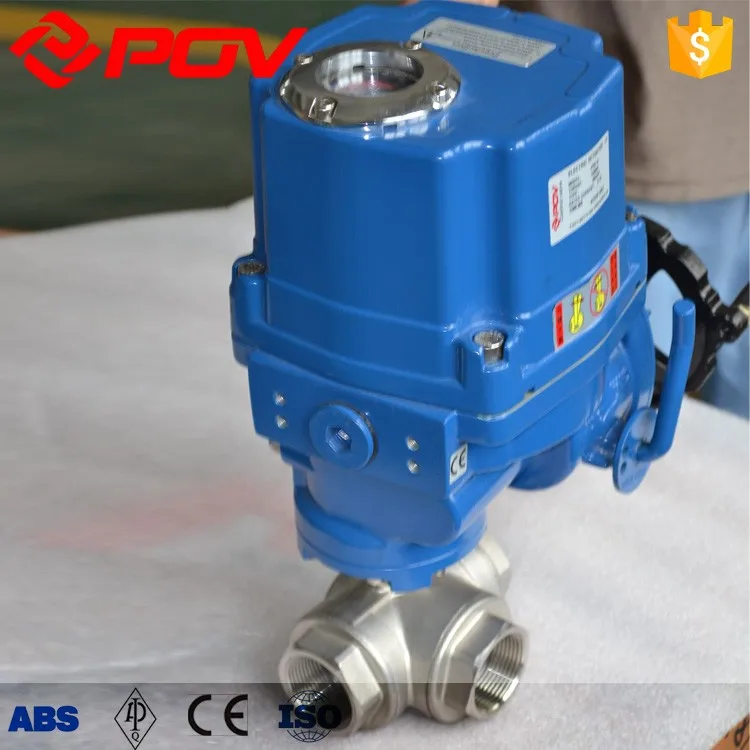

Product photo
Product Description

Standard technical parameters

Valve body
Nominal diameter: DN15-DN300
Body material: WCB, 304, 316
Connection:Flange, screw thread
Pressure class:PN1.6-4.0MPa

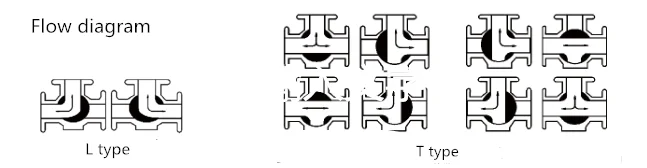

Structure: 3way T/L- type float ball core

Applicable medium: Water, liquid, gas, oil, powder, steam, acid


Valve components
Seal sealing: PTFE:-30~180℃ , PPL:-30~250℃
Hard seal: -30~450℃
Hard alloy: Surface spray welding, tungsten nitride
Core material: 304, 316, 316L; Hard seal core surface spray
welding, tungsten nitride.
Stem material: 304

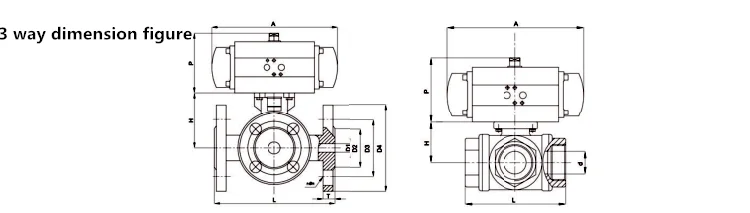

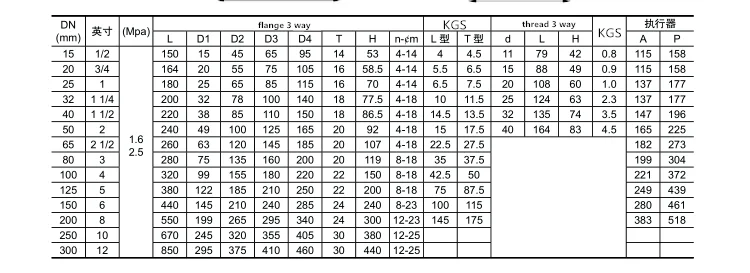

Specification

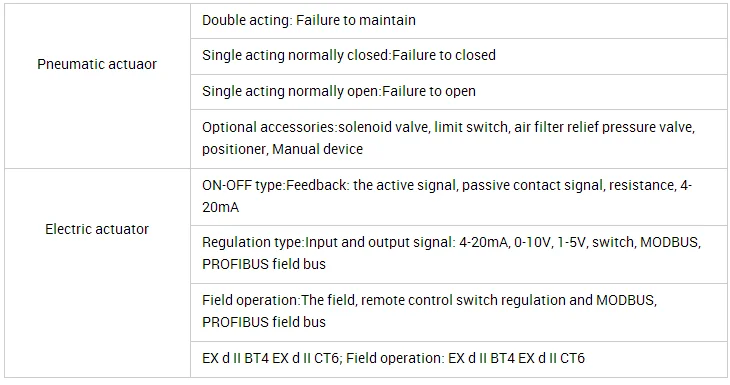

Actuator type:

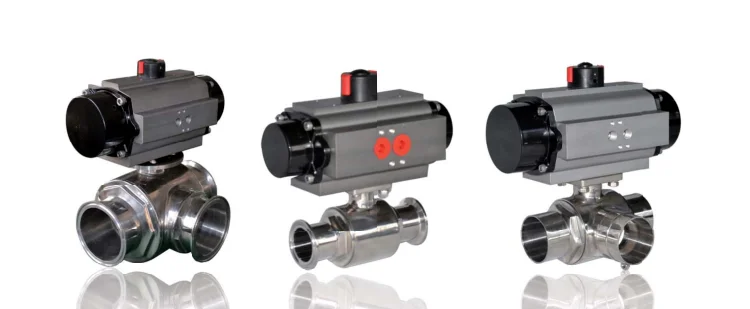

Related Products
POV has a widely range of valves and the accessories of the valve, here recommend some related series for your selection.
Hot sale valves:
Company Introduction

POV Fluid Control Technology (Wuhu) Co.,Ltd

Structure
Butterfly valve, ball valve, gate valve, control valve, check valve, diaphragm valve and so on.
Actuator
Manual, Pneumatic, Solenoid, Electric, Motorized
Material
Stainless Steel, Plastic, Brass, Carbon Steel, PTFE, Metal, PVC, Iron and so on.
Medium
Water, Gas, Oil, Acid, Alkali, Corrosivity, Sewage, Power and so on.
Package&Delivery
HS CODE
8481400000
Express
DHL,FEDEX,UPS,TNT,EMS,etc.
Small size package
Packaged by Cartons,full of foam to prevent damage during shipping
By sea
China's any port,such as Shanghai port,Ningbo port,Tianjin port.
A mass of cargos package
Packaged by Plywood case as per exporting standard,full of foam to prevent damage during shipping
By air
Shanghai Pudong International airport
Fast delivery
Shipped in 6 days after payment
Other economical transportation ways
Railway transport or as per customized requirements.
Application

Desulfurization Valve for Flue gas

The electric butterfly valve is applied on controlling the on-off valve for desulfurized flue gas in electric power plant.

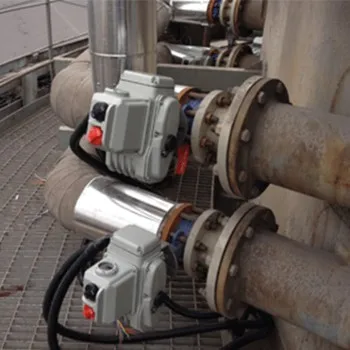

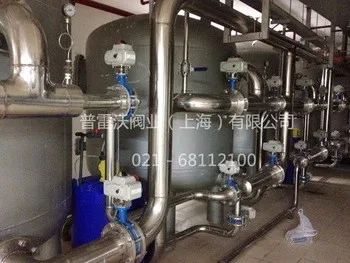

Water Processing System

The electric butterfly valve is applied on the water reverse osmosis system in Wanbao international hotel, Shanghai.

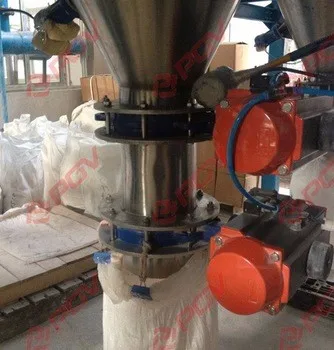

Powder Processing System

The pneumatic valve is applied in the industry of powder processing like food and construction materials.

Our factory

1. We have the strict material purchasing management system to make sure all materials are good.
2. High quality and advanced machines to make sure all the dimensions are accurate.
3. 100% quality test to make sure every product in good performance.
4. Standard export packing to protect the goods in shipment.
5. Fast response to your inquiry.
